ASUS Dual GeForce RTX™ 3060 OC Edition 12GB GDDR6 Review

ASUS Dual GeForce RTX™ 3060 OC Edition 12GB GDDR6 Review


2x Fans. 2x Fun.
Featuring the latest NVIDIA® Ampere architecture, ASUS Dual GeForce RTX™ 3060 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 20 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

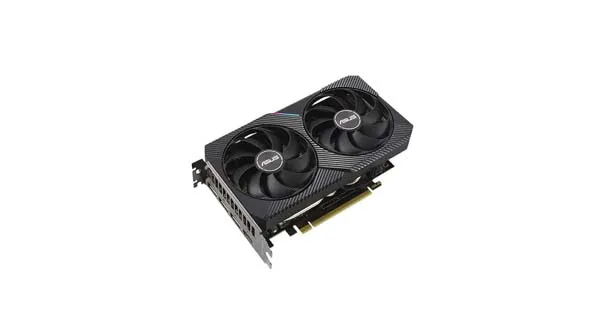

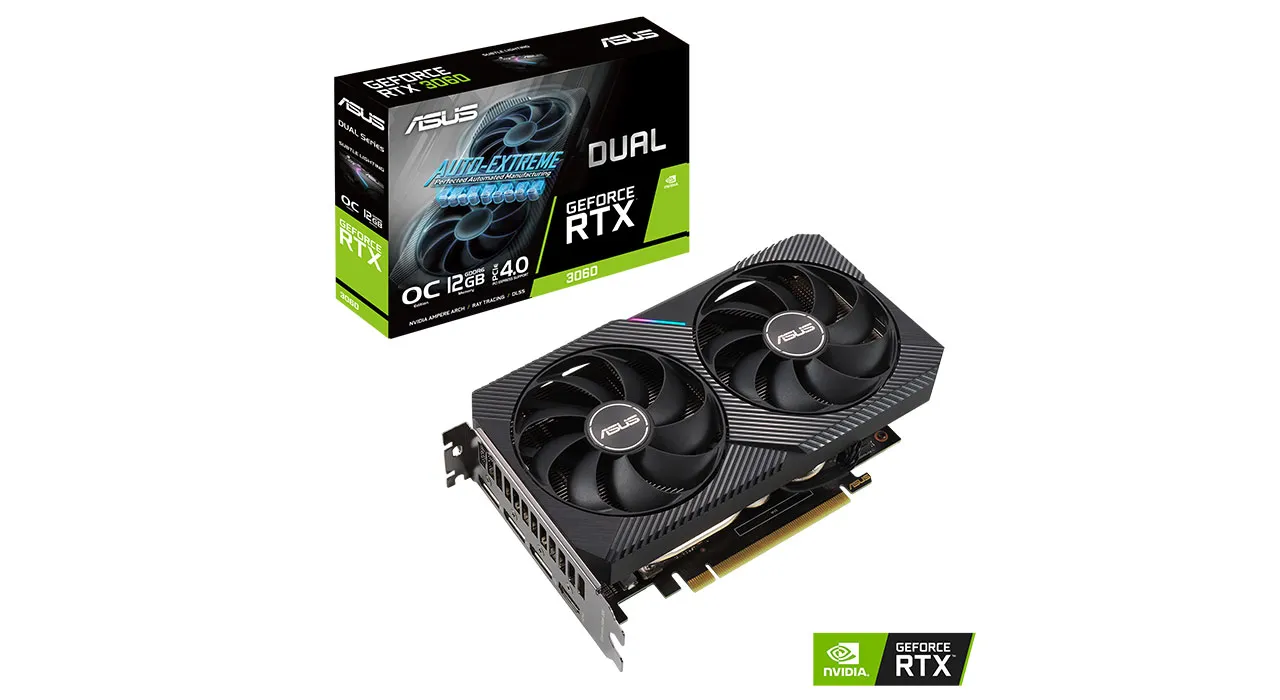

ASUS Dual GeForce RTX™ 3060 OC Edition 12GB GDDR6

Cooling
Axial-tech Fan Design: Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology: Quiet intelligence
To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.

2-slot Design: Sink your heat into this
A carefully designed shroud, heatsink, and heatpipe layout allows the two Axial-tech fans to leverage chassis side-panel ventilation and deliver thermal performance that belies the card’s size.

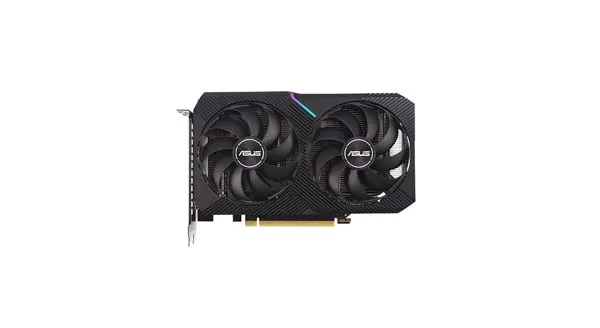

ASUS Dual GeForce RTX™ 3060 OC Edition 12GB GDDR6

Engineering
Auto-Extreme Technology: Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

Protective Backplate: That's so metal!
The PCB is reinforced by an aluminum backplate that adds structural rigidity, helping to prevent flex and protect components and trace pathways from damage.

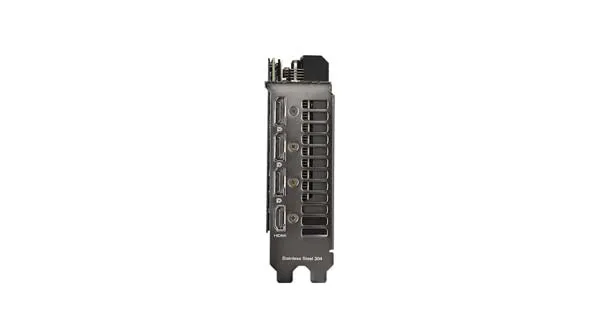

Stainless Steel Bracket: Steel yourself
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.

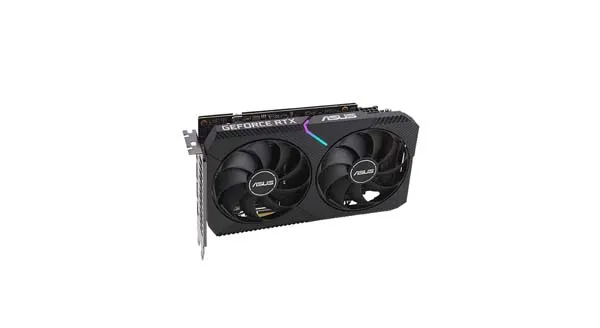

ASUS Dual GeForce RTX™ 3060 OC Edition 12GB GDDR6

Brand: ASUS
Series: Dual
Model: DUAL-RTX3060-O12G
InterfaceInterface: PCI Express 4.0
ChipsetChipset Manufacturer: NVIDIA
GPU Series: NVIDIA GeForce RTX 30 Series
GPU: GeForce RTX 3060
Core Clock: 1867 MHz
CUDA Cores: 3584
MemoryEffective Memory Clock: 15 Gbps
Memory Size: 12GB
Memory Interface: 192-Bit
Memory Type: GDDR6
3D APIDirectX: DirectX 12 Ultimate
OpenGL: OpenGL 4.6
PortsMulti-Monitor Support: 4
HDMI: 1 x HDMI 2.1
DisplayPort: 3 x DisplayPort 1.4a
DetailsMax Resolution: 7680 x 4320
SLI Support: No
Virtual Reality Ready: Yes
Cooler: Double Fans
Recommended PSU Wattage: 650W
Power Connector: 1 x 8-pin
HDCP Ready: 2.3
Max GPU Length: 200 mm
Card Dimensions (L x H): 7.87" x 4.84"
Slot Width: Dual Slot

ASUS Dual GeForce RTX™ 3060 OC Edition 12GB GDDR6

Pros:
- Compact size.
- Good amount of display outputs.

Cons:
- Expensive for a 3060.

Overall Review: Perfect buy for a budget gaming build, I would recommend this card.
